Gabion Hexagonal Mesh

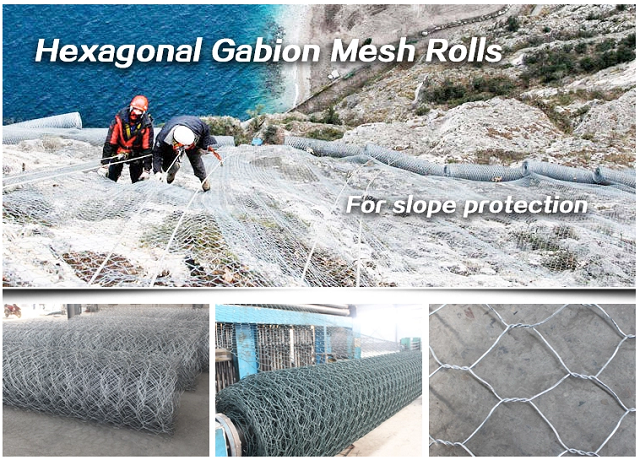

Gabion Hexagonal Mesh by the high-quality steel wire twisted machine from the twisted and used for slope support, foundation pit support, mountain rock face hanging net shotcrete, slope vegetation (green), railway freeway isolation retaining block, it can also be made of stone cage, stone pad for rivers, dams And seawall anti-erosion protection and reservoirs, river closure with rock crater.



Gabion Hexagonal Mesh Parameters



Aperture: 60 * 80mm, 80 * 100mm, 100 * 120mm, 120 * 150mm



 In which the length of the double-stranded parts shall not be less than 50mm. To ensure that part of the wire stranded gold plating and PVC coating is not damaged.

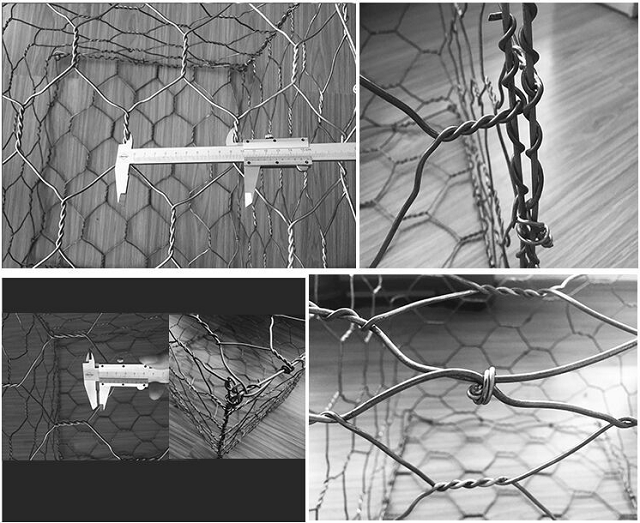

Wire diameter: gabion wire mesh divided into three kinds - wire, wire side, tied wire



1). The range of mesh wire is 2mm-4mm



2). Side wire is generally greater than the wire, coarse 0.5mm-1mm



3). tie wire is generally less than wire, common to the majority of 2.2mm







Wire tension: not less than 38kg / m2 380N / mm



Surface treatment



1). Hot-dip galvanizing. The maximum amount of zinc can reach 300g / m2. Strong anti-corrosion



2). Gore where the (zinc-aluminum alloy). This is divided into two materials, zinc -5% aluminum - mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire. Anti-corrosion super



3). PVC plastic package. The thickness of the package is generally 1.0mm thickness of the package, for example: 2.7mm package after 3.7mm. Strong anti-corrosion







Cut off: the gabion in the long direction of each meter plus a partition

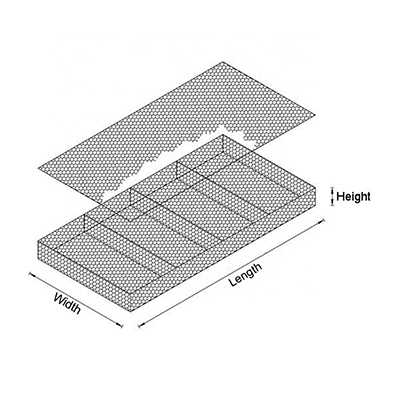

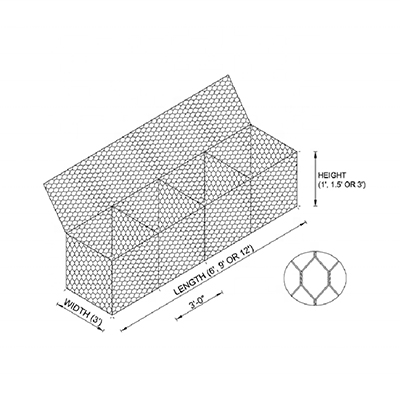

Size: can be customized



The aperture, the diameter of the wire control range
